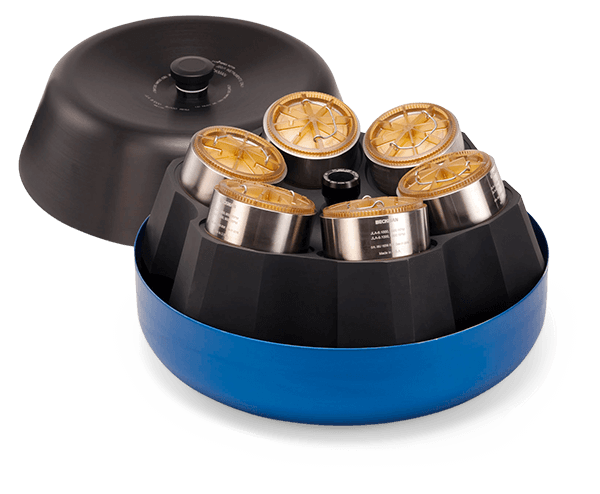

J-LITE JLA-8.1000 Fixed-Angle Aluminum Rotor- 6 x 1,000 mL, 8,000 rpm, 15,970 x g
Product No:363688
For use in Avanti J-26 XP Series and Avanti J-26S Series centrifuges.
Major applications: General purpose, large-volume processing, pelleting of bacteria, cell organelles, viruses, and precipitates.
Empty rotor weight: 16.8 kg (37 lb)
Package Includes
Part Number Description: Product 969328, 969329. JLA-8.1000 Rotor; Product 363563, 363686. Lid with removable canisters 363680, A98812. Cap/Closure with PC Auto Vent Plug Assembly 392574.
Labware Kit Includes: Bottle Rack, Spatula, Tool Kit (bottle grip and wrench).
DISCOVER THE NEW 3D EXPERIENCE
£19,423.00 List Price - £19,423.00
Resources + Tools
Product Specifications
| Platform | Avanti |
| Rotor Type | Fixed-Angle (High Performance) |
| Angle | 20 |
| Maximum RPM | 8,000 rpm |
| Max g-Force | 15,970.00 |
| k-Factor | 2,482 |
| Number of Tubes | 6x1000 mL / 95x191 mm(6x1000 mL / 4x8 in) |
| Nominal Capacity | 6000 mL |

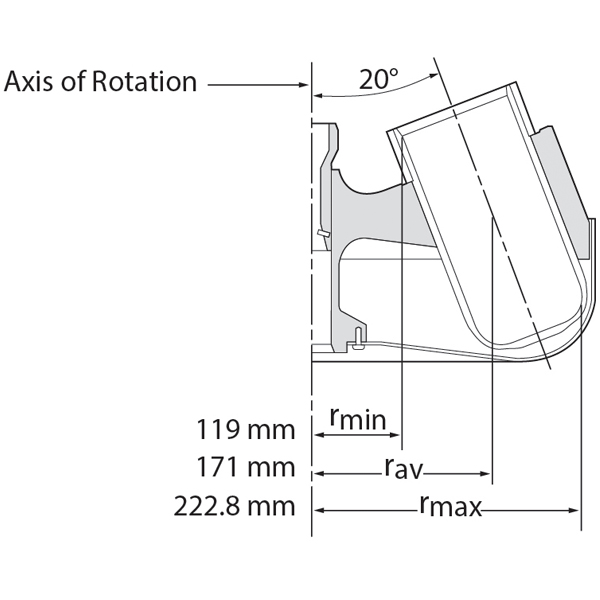

| rMAX | 222.8 |
| rMIN | 119 |
| rAV | 171 mm |
| BioSafe | Bio-Certified |
| Materials | Anodized Aluminum |
| Package Quantity | 1 |
Related Products or Parts
500 mL, Polycarbonate Bottle with Cap Assembly, 69 x 160mm - 6Pk
500 mL, Polycarbonate Bottle with Cap Assembly, 69 x 160mm - 6Pk
500 mL, Polypropylene Bottle with Cap Assembly, 69 x 160mm - 6Pk
500 mL, Polypropylene Bottle with Cap Assembly, 69 x 160mm - 6Pk
250 mL, Polycarbonate Bottle with Screw-On Cap, 62 x 120mm - 6Pk
250 mL, Polycarbonate Bottle with Screw-On Cap, 62 x 120mm - 6Pk
250 mL, Polypropylene Bottle with Screw-On Cap, 62 x 120mm - 6Pk
250 mL, Polypropylene Bottle with Screw-On Cap, 62 x 120mm - 6Pk
50 mL, Polypropylene Bottle with Cap Assembly, 29 x 104mm - 6Pk
50 mL, Polypropylene Bottle with Cap Assembly, 29 x 104mm - 6Pk
50 mL, Polypropylene Bottle with Screw-On Cap, 29 x 104mm - 25Pk
50 mL, Polypropylene Bottle with Screw-On Cap, 29 x 104mm - 25Pk
50 mL, Polypropylene Tube with Snap-On Cap, 29 x 104mm - 25Pk
50 mL, Polypropylene Tube with Snap-On Cap, 29 x 104mm - 25Pk
50 mL, Open-Top Thickwall Polycarbonate Open-Top Tube, 29 x 104mm - 25Pk
50 mL, Open-Top Thickwall Polycarbonate Open-Top Tube, 29 x 104mm - 25Pk
50 mL, Open-Top Thickwall Polypropylene Tube, 29 x 104mm - 25Pk
Open-Top Thickwall Polypropylene Tube For use in High Performance and High Capacity Rotors: JA-30.50 Ti
50 mL, Polycarbonate Tube with Snap-On Cap, 29 x 104 mm - 25Pk
50 mL, Polycarbonate Tube with Snap-On Cap, 29 x 104 mm - 25Pk
69 mm Diameter Polyterephthalate Bottle Adapter, Quantity of One
Adapter for Tubes in Beckman Coulter Rotors used In High-Performance Rotors: JLA-9.1000, JLA-8.1000.
Required Adapter for Tubes:
(part # 357001) 50 mL Polypropylene Bottle with Cap Assembly, 29 x 104 mm; Required Adapter 356996 in 363683*
(part # 355605) 500 mL Polycarbonate Bottle with Cap Assembly, 69 x 160 mm
(part # 357000) 50 mL Polypropylene Bottle with Cap Assembly, 29 x 104 mm; Required Adapter 356996 in 363683*
(part # 356013) 250 mL Wide-Mouth Polycarbonate Bottle with Cap Assembly, 69 x 120 mm; Required Adapter 362750 in 363683*
(part # 356011) 250 mL Wide-Mouth Polypropylene Bottle with Cap Assembly, 69 x 120 mm; Required Adapter 362750 in 363683*
(part # 355605) 500 mL Wide-Mouth Polycarbonate Bottle with Cap Assembly, 69 x 160 mm
(part # 355607) 500 mL Polypropylene Bottle with Cap Assembly, 69 x 159 mm
(part # 356011) 50 mL Polypropylene Bottle with Screw Cap, 29 x 104 mm; Required Adapter 356996 in 363683*
(part # 363664) 50 mL Polycarbonate Tube with Snap-on Cap, 29 x 104 mm; Required Adapter 356996 in 363683*
(part # 357005) 50 mL Thickwall Polypropylene Tube with Snap-on Cap, 29 x 104 mm; Required Adapter 356996 in 363683*
(part # 363647) 50 mL Open-Top Polycarbonate Tube, 29 x 104 mm; Required Adapter 356996 in 363683*
(part # 357007) 50 mL Open-Top Thickwall Polypropylene Tube, 29 x 104 mm; Required Adapter 356996 in 363683*
(part # 355663) 15 mL Open-Top Graduated Conical Polypropylene Tube, 17 x 119 mm; Required Adapter 356960 in 363683*
*These adapters fit inside one another to accommodate smaller bottles and tubes.
62 mm Diameter Polyterephthalate Bottle Adapter, Quantity of Two
Adapter for Tubes in Beckman Coulter Rotors
High Performance and High Capacity Rotors: JLA-10.500, F10BCI-6x500y, JA-10, JLA-9.1000, JLA-8.1000
Required Adapter for Tubes:
(part # 356013) 250 mL Wide Mouth Polycarbonate Bottle with Cap Assemblies
(part # 356011) 250 mL Wide Mouth Polypropylene Bottle with Cap Assemblies
(part # 363683) 500 mL Adapter
(part # 566353) 4 mL Polypropylene Bio-Vial Tube*
*BioVials require adapters part # 362750 and 342098 to run in the JLA-10.500 and JA-10 rotors. Two adapters (part # 342098) can be double-stacked inside of one adapter (part # 362750) per rotor cavity if greater capacity is desired.
