Vi-CELL XR

The Vi-CELL Cell Viability Analyzer provides an automatic means to perform the Trypan Blue Dye Exclusion method, allowing users to load up to 9 samples at once for easy and automated cell analysis. Vi-CELL software offers pre-programmed and customizable analysis options for consistent and accurate analysis of simple cell systems or your own cell line.

Documentation and Application Notes



Choose a Vi-CELL XR Model

Tech Docs Part Number Product Name Description Particle Size Analysis Range Viability Range List Price Buy
731196
Vi-CELL XR System, Quad Paks, Sample Cups, Control
2.00|70.00|μm / 2|70|μm
0.00|100.00

-

731050
Vi-CELL XR System, Quad Paks, Sample Cups, Control, Computer, Monitor
2.00|70.00|μm / 2|70|μm
0.00|100.00

-

175474
Focus Control

£185.35

Buy
175478
1M Concentration Control

£185.35

Buy
383721
4 bags of 120 sample vials per bag

ERROR: Field "Particle Size Analysis Range" does not exist on this item

ERROR: Field "Viability Range" does not exist on this item

£70.78

Buy
383722
4 reagent kits, 8 bags of 120 sample vials

ERROR: Field "Particle Size Analysis Range" does not exist on this item

ERROR: Field "Viability Range" does not exist on this item

£975.08

Buy
383260
1 reagent kit, 1 bag of 120 sample vials

ERROR: Field "Particle Size Analysis Range" does not exist on this item

ERROR: Field "Viability Range" does not exist on this item

£270.46

Buy
383556
2.00|70.00|μm / 2|70|μm

-

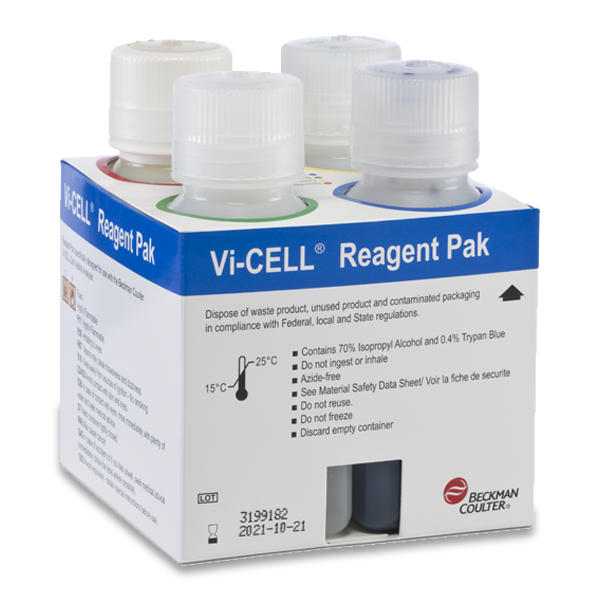

B94987
4 reagent kits, no sample vials included

ERROR: Field "Particle Size Analysis Range" does not exist on this item

ERROR: Field "Viability Range" does not exist on this item

£874.80

Buy

Features

Powerful Flexible Software

  • Bioprocess tracking, auto-sampler queue & control monitoring features
  • Real-time cellular imaging for data parameters not available with standard aperture cell counting methods
  • Provides results for percent viability, total cell & viable cell concentration and mean cell size

Operation

  • 12-position auto sampler for walk-away sample analysis
  • Samples within 50 x 103 to 1 x 107 cells/mL range require no dilution
  • Customizable cell types for analyzing diverse cell species

Bioprocessing Applications

  • Key cell culture parameters to help you optimize and monitor the bioprocess
  • Results can be viewed easily on the screen or exported for off-line analysis

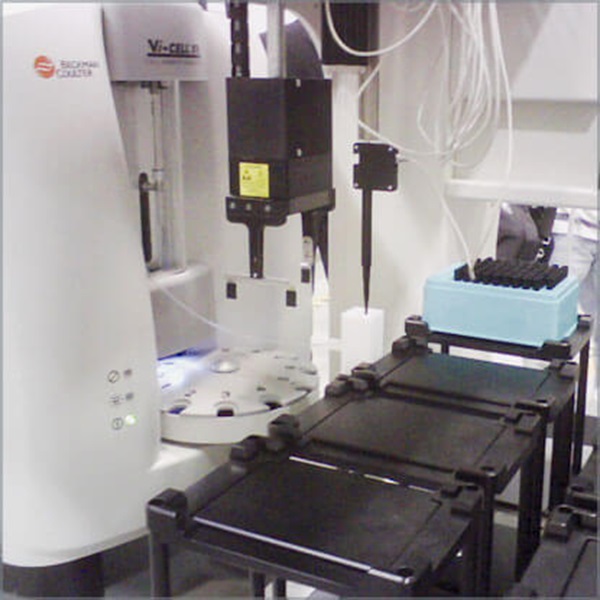

  • Through integration partners we offer optional automated online sample introduction for real-time cell analysis for improved bioprocess monitoring and control

Compliance and Validation

  • 21 CFR Part 11 enabled with audit trail, electronic signature capability, secure sign-on, multiple user level permissions & administrative configuration tools
  • IQ/OQ


Product Specifications

Detection Video image through quartz cell
Throughput < 2.5 min
Max Capacity Volume Range 0.50|2.00|mL
Sample Volume 500.00|µL
