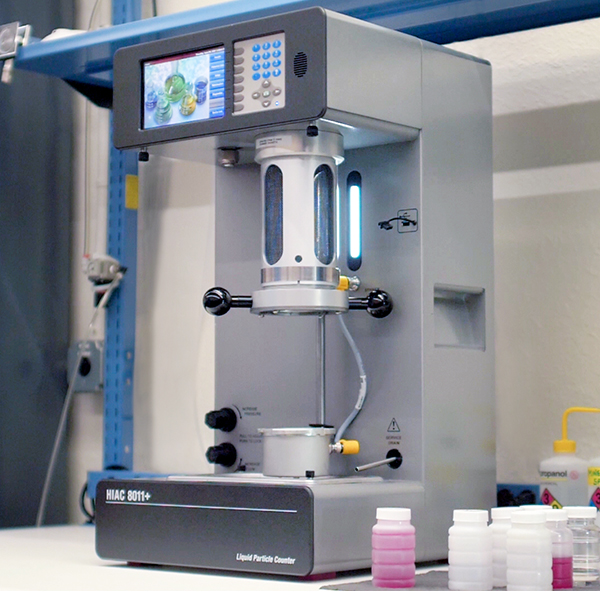

HIAC 8011+ Liquid Particle Counting System

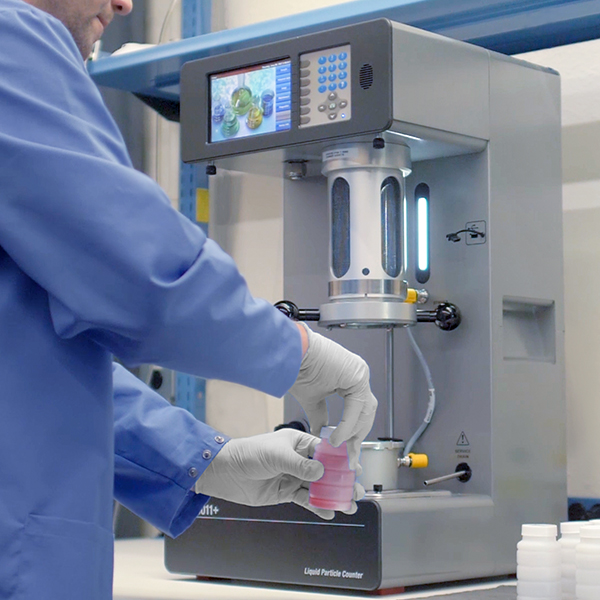

The HIAC 8011+ is a liquid particle counting system designed for the real world. Easy to use with one-button sampling and results in under 60 seconds, the HIAC 8011+ system offers consistent, accurate fluid sampling from 1cST to 425 cSt without dilution.

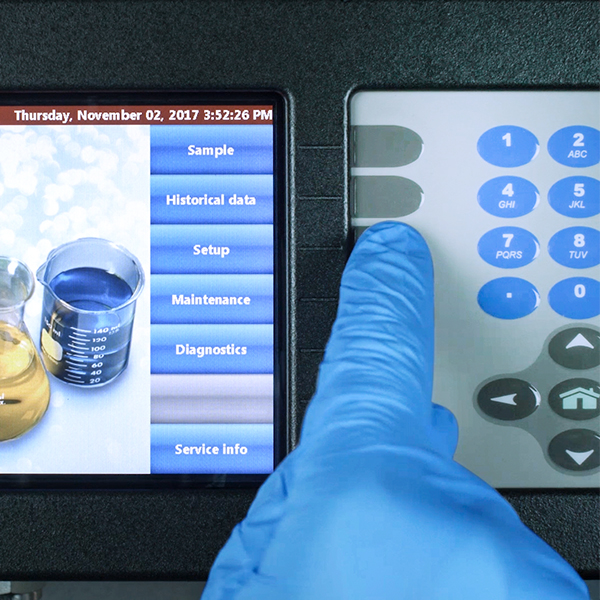

  • Intelligent on-screen prompts for common sampling activities
  • Fewer steps for higher throughput
  • Paperless option for application-specific reports
  • Online report review & approval

Documentation and Application Notes





Choose a Model

Tech Docs Part Number Product Name Calibration Options Intervals Flow Rate Fluid Type Particle Size Analysis Range List Price Buy

Features

Intuitive Sampling

  • Advanced instrument diagnostics with recommended actions for users
  • User alerts for particle settling & run-to-run variances
  • HRLD Smart Sensor alerts for service & calibration

Data Management

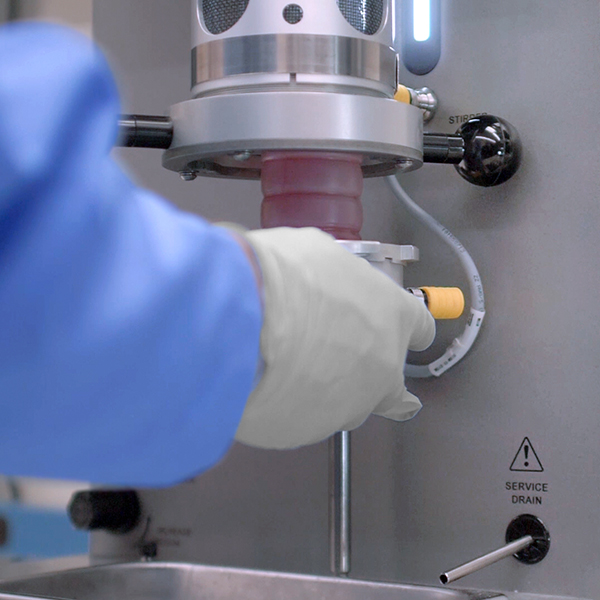

  • Pressurized sample delivery minimizes impact of air bubbles
  • Integrated vacuum/de-gas function streamlines sample handling for increased accuracy
  • Automated sample flow ensures precision data

Fast

  • One-button sampling with results in < 60 seconds
  • Fast loading–up to 20 custom test recipes
  • Won sampling recipe setup in < 5 steps

Time Savings

  • No dilution required for high viscosity fluids (<425cSt)
  • Automated cleaning & flushing routines
  • Sensor contamination alarm when cleaning needed prior to sampling


Product Specifications

Performance ± 2.5% flow accuracy
Light Source Light obscuration
Flow Rate 20-100 mL/minute
Coincidence Loss 10%
Sample Volume 5 - 100|mL
Particle Size Analysis Range 2.00|400.00|µm(c)
Fluid Compatibility Akso Fyrquel™, Alcohols, Aldehydes, Aromatics, Diesel fuel, Esters, Ethers, Fuels, Jet fuel (JP4, JP5, & others), Kerosene, Ketones, MIL-H-5606, MIL-H-83282, Marston Bentley HW 540, Mineral oil, Mobile Zerol™ 150, Monsanto Coolanol™, Monsanto Skydrol™, Shell Tellis™, Stoddard Solvent, Water
Operating Range ||90 psig maximum
Tare Volumes 0.1 to 100 mL
